· 产品介绍 /Products：
|
电压等级 Voltage class |
接地软铜线规格 Ground soft copper wire |
接地操作棒长度（MM） Length of ground operation rod |
|||
|
(MM) |
(M) |
绝缘部分 Insulating |
握手部分 Handheld |
总长度 Total length |
|
| 10KV | 25 | 1*3+7~1.5*3+20 | 700 | 300 | 1000 |
| 35KV | 25 |
1.5*3+18 |
900 | 600 | 1500 |
| 68KV | 25 | 1.5*3+20 | 1000 | 600 | 1600 |
| 110KV |
25、35 |
9*3 2*3+2 |
1300 | 700 | 2000 |
| 220KV |
25、35 |
9*3 3*3+25 |
2100 | 900 | 3000 |
| 330KV |
35、50 |
12*3 4*3+25 | 3000 | 1100 | 4100 |
| 500KV |
35、50 |
13*3~20*3 | 4100 | 1400 | 5500 |
|
220-500KV 架空地毯 Overhead ground wire |
25 |
1*3+7~1.5*3+20 | 700 | 300 | 1000 |
|
高压试验设备 High pressure test equipment |
35、50 | 5*3~10*3 | 700 | 300 | 1000 |
· 每米接地线的额定负荷/The rated value of the copper wire per meter：
|
截面积MM Sectional area |
10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 |
|
线经/MM Wire diameter |
4.2 | 5.7 | 7.5 | 8.78 | 11 | 12 | 16 | 17 |
|
外经/MM Sheath diameter |
7.3 | 7.8 | 9.6 | 11.2 | 12.6 | 16.5 | 21 | 22 |
|
电阻值/MΩ Resistance value |
1.98 | 1.24 | 0.79 | 0.56 | 0.4 | 0.28 | 0.21 | 0.16 |
|
安全载流A Safety current |
90 | 100 | 123 | 150 | 210 | 238 | 300 | 300 |
· 配置说明 /Configuration：

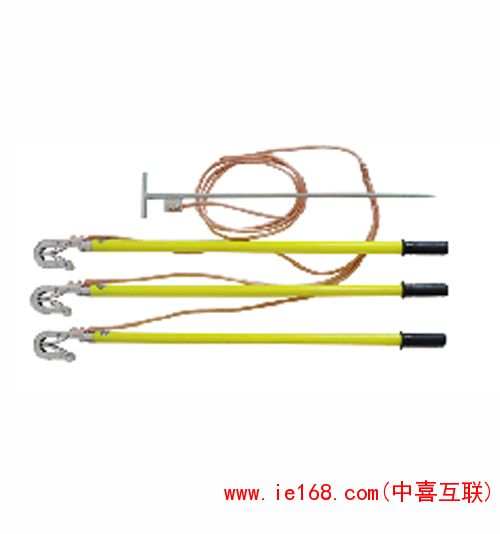

用途：用于输电线路、发电厂和变电设备停电检修时短路接地。
Used：It is suitable for transmission lines，power plants and substation equipment，short
circuit grounding for power outage maintenance.
特点：导线端线卡采用铝合金压铸，强度高导电性能好。
Features：Wire clamper with Aluminum Alloy casting，high strength，good conductivity
