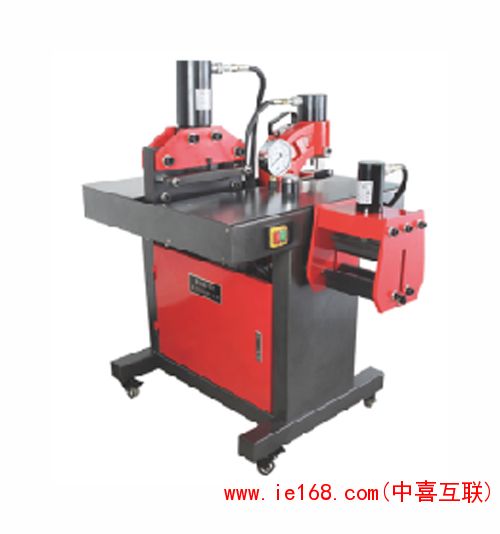

portant;" />· 产品介绍 /Products：
|
产品编号 Item number |
06232 |
06231A | 06231 |
| 型号
Model |
EPCB-301 | EPCB-401A | EPCB-401 |
|
功 能 Function |
切排，弯排，冲孔三合一 with three functions，cutting， punching and bending |
切排，弯排，冲孔，压接四合一
with three functions, cutting, punching, bending and crimping |
切排，立弯，平弯，冲孔四合一 with Four functions，cutting， punching and bending(horizontal and erective) |
|
工作台尺寸 Dimension of work table |
approx.690x690x730mm |
approx.690x690x730mm | approx.690x690x730mm |
|
电 压 Voltage single phase |
220V50HZ | 220V50HZ | 220V50HZ |
|
额定压力 Rating oil pressure |
700kg/cm² | 700kg/cm² | 700kg/cm ² |
|
弯排出力 Bending force |
170KN/200KN | 170KN/200KN |
270KN |
|
弯排范围 Bending range |
150x10mm max/200x12mm max |
150x10mm max/200x12mm max |
125x12.5mm max |
|
切排出力 Cutting force |
200KN/300KN | 200KN/300KN | 200KN/300KN |
|
切排范围 Cutting rang |
150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max |
|
冲孔出力 Punching force |
300KN/350KN | 300KN/350KN | 300KN/350KN |
|
喉深 Distance from hole to sheet side |
95x110mm max | 95x110mm max | 95x110mm |
|
冲孔范围 Punch rang |
Φ10.5mmΦ13.8mm Φ17mmΦ20.5mm |
Φ10.5mmΦ13.8mm Φ17mmΦ20.5mm |
3/8"(Φ10.5mm)，1/2"(Φ13.8mm), 5/8"(Φ17mm),3/4"(Φ20.5mm) |
|
包 装 Package |
木箱wooden case | 木箱wooden case | 木箱wooden case |
