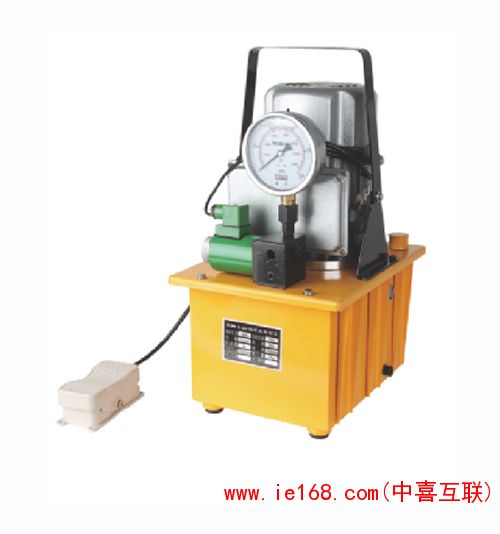

portant;" />· 产品介绍 /Products：
|
产品编号 Item number |
16153-1 |
16153-2 |
|
产品型号 Model |
ZCB6-5-AB | ZCB6-5-A3 |
|
类型 Type |
双回路double-acting | 单回路single-acting |
|
输出功率 Rated Output |
750W |
750W |
|
电压 Voltage |
220W/380W |
220W/380W |
|
额定压力 Rated Pressure |
70Mpa | 70Mpa |
|
流 量 Flow Rate |
低压 low pressure 2.5L/Min | 低压 low pressure 2.5L/Min |
|
高压 high pressure0.52L/min |
高压 high pressure0.52L/min |
|
|
储油量 Oil Capacity |
8L | 8L |
|
频 率 Frequency |
50-60HZ | 50-60HZ |
|
重量（KG） Weight |
approx.N.W26KG G.W30KG |
approx.N.W26.65KG G.W29KG |
|
包 装 Package |
木箱wooden case | 木箱wooden case |
· 配置说明 /Configuration：
◆ 高低压两段出油量快，涡轮叶式吸油可达最高有效油量。
◆ High and low speed two stage design is for quick oil output. Turbine oil
absorption could ensure reaching max effective oil volume.
◆ 压力安全阀过载保护装置避免超载破坏，超过700kg/cm2时自动泄压。
◆ Over pressure safety valve unit could avoid over pressure damage.
At 700kg/cm2，automatically release.
