portant;" />· 产品介绍 /Products：
|
产品编号 Item number |
型号 Model |
额定负荷（KN） Rated Load |

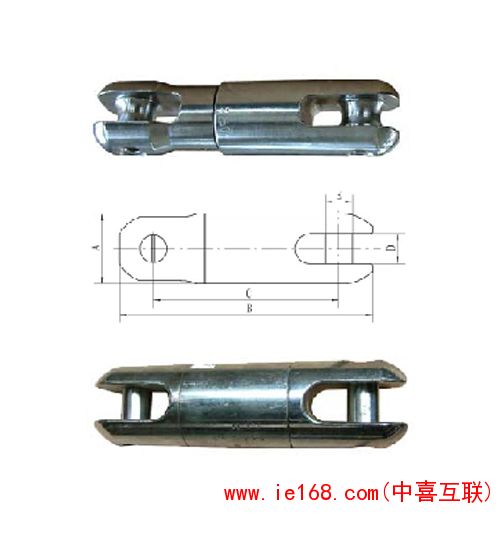

主要尺寸（MM） Main Size |
重量（KG）
Weight |
||||
| A | B | C | D | E | ||||
| 17121 | SLX-0.5 | 5 | 19 | 61 | 40 | 8 | 9 | 0.20 |
| 17122 | SLX-1 | 10 | 30 | 100 | 70 | 12 | 13 | 0.40 |
| 17123 | SLX-2 | 20 | 35 | 120 | 90 | 14 | 14 | 0.55 |
| 17124 | SLX-3 | 30 | 37 | 129 | 95 | 16 | 16 | 0.65 |
| 17125 | SLX-5 | 50 | 42 | 154 | 116 | 18 | 17 | 1.50 |
| 17126 | SLX-8 | 80 | 57 | 220 | 165 | 24 | 22 | 2.40 |
| 17127 | SL130 | 130 | 62 | 248 | 192 | 26 | 24 | 3.50 |
| 17128 | SL180 | 180 | 75 | 294 | 222 | 26 | 26 |
7.20 |
| 17129 | SL250 | 250 | 85 | 331 | 251 | 30 | 30 | 10.5 |
| 17130 | SL250V | 250 | 80 | 323 | 243 | 30 | 30 | 8.0 |
· 配置说明 /Configuration：
用途：适用于导线、钢芯铝绞线放线时连接牵引钢丝绳，并能释放钢丝绳捻劲。
Uses: Apply to connecting the conductor and ACSR with steel stranded rope in stringing construction.
The product can release torsion strain accumulation of wire rope.
特点：采用优质钢材，强度高，体积小，能通过放线滑车
Feature: Product is made of high strength steel with small size.It can pass through the stringing block.
