· 产品介绍 /Products：
|
产品编号 Item number |
型号 Model |
滑轮数 Number of sheaves |
额定负荷 Rated load （kN） |
外径×轮宽(MM) Roller Diaxwidth |
最大绳径（mm） MAX. Rope Diamete |
重量 Weight (kg) |
| 11301 | QHL1x1 | 1 | 10 | Φ100×31 |
Φ8 |
2 |
| 11302 | QHL1x2 | 2 | Φ80×27 | Φ6 |
2 |
|
| 11303 | QHL1x3 | 3 | Φ80×27 | Φ6 | 2 | |
| 11311 | QHL2x1 | 1 | 20 | Φ120×35 |
Φ10 |
3 |
| 11312 | QHL2x2 | 2 | Φ100×31 | Φ8 | 3 | |
| 11313 | QHL2x3 | 3 | Φ100×31 | Φ8 | 4 | |
| 11321 | QHL3x1 | 1 | 30 | Φ150×39 |
Φ11 |
4 |
| 11322 | QHL3x2 | 2 | Φ120×35 | Φ10 | 4 | |
| 11323 | QHL3x3 | 3 | Φ100×31 | Φ8 | 5 | |
| 11331 | QHL5x1 | 1 | 50 | Φ166×40 | Φ13 | 6 |
| 11332 | QHL5x2 | 2 | Φ150×39 | Φ11 | 6 | |
| 11333 | QHL5x3 | 3 | Φ120×35 | Φ10 | 7 | |
| 11341 | QHL8x1 | 1 | 80 | Φ205×49 | Φ18 | 9 |
| 11342 | QHL8x2 | 2 | Φ166×40 | Φ13 | 9 | |
| 11343 | QHL8x3 | 3 | Φ150×39 | Φ11 | 10 | |
| 11351 | QHL10x1 | 1 | 100 | Φ246×60 | Φ20 | 12 |
| 11352 | QHL10x2 | 2 | Φ166×40 | Φ13 | 12 | |
| 11353 | QHL10x3 | 3 | Φ150×39 | Φ11 | 13 |
· 配置说明 /Configuration：
用途：适用于电力线路施工中组立杆塔、架线、吊装设备及其他起重作业。
User:Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.

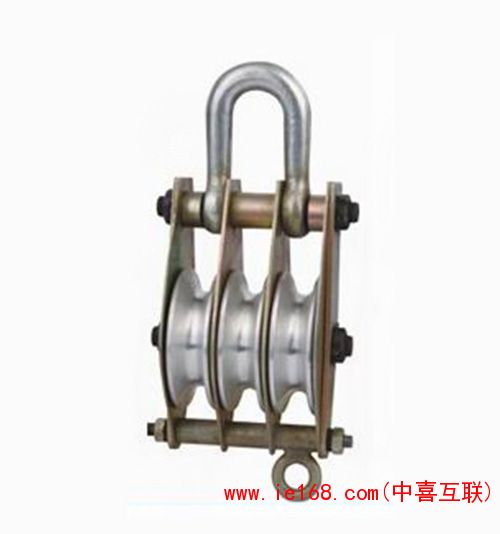

特点：采用铝合金侧板，铝合金滑轮，自重较轻
Features:Product is made of aluminum alloy plate with aluminum alloy wheel,it has light weight.
说明：订货时应注明需要开口、闭口、钩式、环式。
Specification:Accessories style is need to indicated such like open type,close type,hook type and ring type when customer place order.
