· 产品介绍 /Products：
|
产品编号 Item number |
型号 Model |
滑轮数 Number of sheaves |
额定负荷 Rated load （kN） |
外径×轮宽(MM) Roller Diaxwidth |
最大绳径（mm） MAX. Rope Diamete |
重量 Weight (kg) |
| 11101 | QHN1x1 | 1 | 10 |
Φ100×31 |
Φ8 | 2 |
| 11102 | QHN1x2 | 2 | Φ80×27 | Φ6 | 2 | |
| 11103 | QHN1x3 | 3 | Φ80×27 | Φ6 | 2 | |
| 11111 | QHN2x1 | 1 | 20 |
Φ120×35 |
Φ10 | 2 |
| 11112 | QHN2x2 | 2 | Φ100×31 | Φ8 | 3 | |
| 11113 | QHN2x3 | 3 | Φ100×31 | Φ8 | 4 | |
| 11121 | QHN3x1 | 1 | 30 |
Φ150×39 |
Φ11 | 3 |
| 11122 | QHN3x2 | 2 | Φ120×35 | Φ10 | 4 | |
| 11123 | QHN3x3 | 3 | Φ100×31 | Φ8 | 5 | |
| 11131 | QHN5x1 | 1 | 50 |
Φ166×40 |
Φ13 | 5 |
| 11132 | QHN5x2 | 2 | Φ150×39 |
Φ11 |
6 | |
| 11133 | QHN5x3 | 3 | Φ120×35 | Φ10 | 5 | |
| 11141 | QHN8x1 | 1 | 80 |
Φ205×49 |
Φ18 |
7 |
| 11142 | QHN8x2 | 2 | Φ166×40 | Φ13 | 8 | |
| 11143 | QHN8x3 | 3 | Φ150×39 | Φ11 | 8 | |
| 11151 | QHN10x1 | 1 | 100 |
Φ246×60 |
Φ20 |
11 |
| 11152 | QHN10x2 | 2 | Φ166×40 | Φ13 | 10 | |
| 11153 | QHN10x3 | 3 | Φ150×39 | Φ11 | 12 |
· 配置说明 /Configuration：
用途：适用于电力线路施工中组立杆塔、架线、吊装设备及其他起重作业。
User:Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.

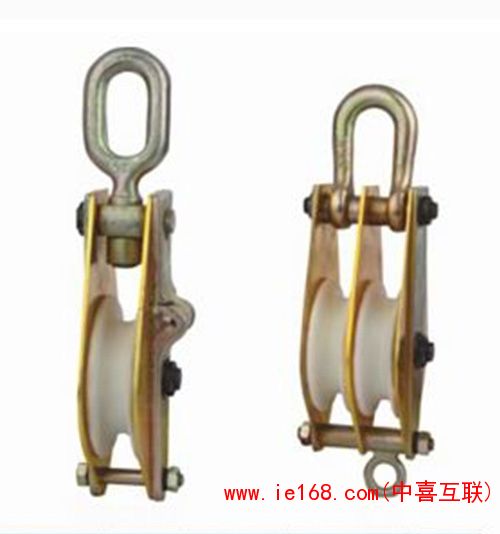

特点：采用铝合金侧板，MC尼龙滑轮，自重较轻
Features:Product is made of aluminum alloy plate with MC nylon wheel,it has light weight.
说明：订货时应注明需要开口、闭口、钩式、环式。
Specification:Accessories style is need to indicated such like open type,close type,hook type and ring type when customer place order.
