· 产品介绍 /Products：
|
产品编号 Item number |
型号 Model |
滑轮数 Number of sheaves |
额定负荷 Rated load （kN） |
外径×轮宽(MM) Roller Dia×width |
最大绳径（mm） MAX. Rope Diameter |
重量 Weight (kg) |
| 11181 | QH1x1 | 1 | 10 |
Φ100×31 |
Φ8 | 3 |
| 11182 | QH1x2 | 2 |
Φ80×27 |
Φ6 | 3 | |
| 11183 | QH1x3 | 3 | Φ80×27 | Φ6 | 4 | |
| 11191 | QH2x1 | 1 | 20 |
Φ120×35 |
Φ10 | 4 |
| 11192 | QH2x2 | 2 |
Φ100×31 |
Φ8 | 5 | |
| 11193 | QH2x3 | 3 | Φ100×31 | Φ8 | 6 | |
| 11201 | QH3x1 | 1 | 30 |
Φ150×39 |
Φ11 | 6.5 |
| 11202 | QH3x2 | 2 |
Φ120×35 |
Φ10 | 5 | |
| 11203 | QH3x3 | 3 | Φ100×31 | Φ8 | 6 | |
| 11211 | QH5x1 | 1 | 50 |
Φ166×40 |
Φ13 | 9.0 |
| 11212 | QH5x2 | 2 |
Φ150×39 |
Φ11 | 13 | |
| 11213 | QH5x3 | 3 | Φ120×35 | Φ10 | 11 | |
| 11221 | QH8x1 | 1 | 80 |
Φ205×50 |
Φ18 | 20 |
| 11222 | QH8x2 | 2 |
Φ166×40 |
Φ13 | 19 | |
| 11223 | QH8x3 | 3 | Φ150×39 | Φ11 | 18 | |
| 11231 | QH10x1 | 1 | 100 |
Φ246×60 |
Φ19 | 22 |
| 11232 | QH10x2 | 2 |
Φ166×40 |
Φ13 | 21 | |
| 11233 | QH10x3 | 3 | Φ150×39 | Φ11 | 20 | |
| 11241 | QH15-1 | 1 | 150 |
Φ280×64 |
Φ22 | 40 |
| 11242 | QH15-2 | 2 |
Φ205×50 |
Φ18 | 33 | |
| 11243 | QH15-3 | 3 |
Φ166×40 |
Φ13 | 26 | |
| 11244 | QH15-4 | 4 | Φ150×39 | Φ11 | 28 | |
| 11245 | QH20-1 | 1 | 200 | Φ305×68 | Φ23 | 56 |
| 11248 | QH20-4 | 4 | Φ205×50 | Φ18 | 50 |
· 配置说明 /Configuration：
用途：用于组立杆塔、架线、吊装设备及其他起重作业。
User:Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.

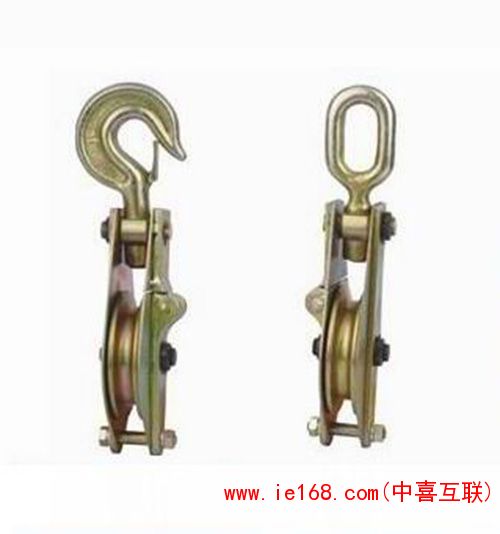

说明：订货时应注明需要钩式、环式或吊板式。
Specification:Hanger includes hook type,plate type and ring tyupe.
This is need indicated when customer place order.
